Minimal Sightlines

Knight Line Sliding Door

Taking a new approach in the manufacture of sliding doors, The Knight Line Sliding door system utilises the glass to create the strength and stability of there sliding door system leading to an almost frame-less system. With a vertical sight-lines of only 20mm this system features one of the thinnest sight lines currently available within the industry.

Knight Line - Aluminium Sliding Door

Maximise Light

Product Details

The aim of the Knight Line sliding door is simple, to create the best possible vision between the indoor and outdoor space. The vision sliding door has an exceptionally thin sight-line which is achieved through taking advantage of modern structural glazing.

Multi point locking has been incorporated into the vertical profiles of the door and concealed within the fabric of the building where possible. This has helped to achieve a seamless look whilst still creating an extremely secure door.

Available in a wide range of RAL colours the Vision sliding door can be customised to suit your own style and taste. The door is also available in a wide range of configurations giving endless possibilities.

Features

  • Doors able to slide either ways – no need to decide what side to open from
  • Opening corners available
  • Sliding into pockets available
  • 20mm sight lines
  • Multi point locking
  • Up to 4 tracks
  • Automated option
  • Slot drainage available
  • Maximum panel weight of 500kg
  • 28-32mm double glzing thickness.
  • Due to the design of the door performance is calculated on an individual basis however an average unit would have the following values:
    • U Value: 1.3W/m2k (using 1.1W/m2k glass unit.)
    • U Value: 1.1W/m2k (using 0.7W/m2k glass unit.)
  • Wind Resistance : EN12210:2000 Class c5
  • Water Tightness : EN12208:2000 Class 7A
  • Air Permability : EN12207:2000 class 4
  • Document q: Compliant
  • Document L : Compliant
  • Frame Depth 44mm

Sample Configurations

The Knight Line Sliding Door is available in a wide range of configurations from 2 panel through to 6 panel to ensure we have a configuration available to everyone.

We also offer a range of sliding pocket doors so that the doors can disappear into the brickwork,

Dual Panel Sliding Door

Dual Panel Sliding Door

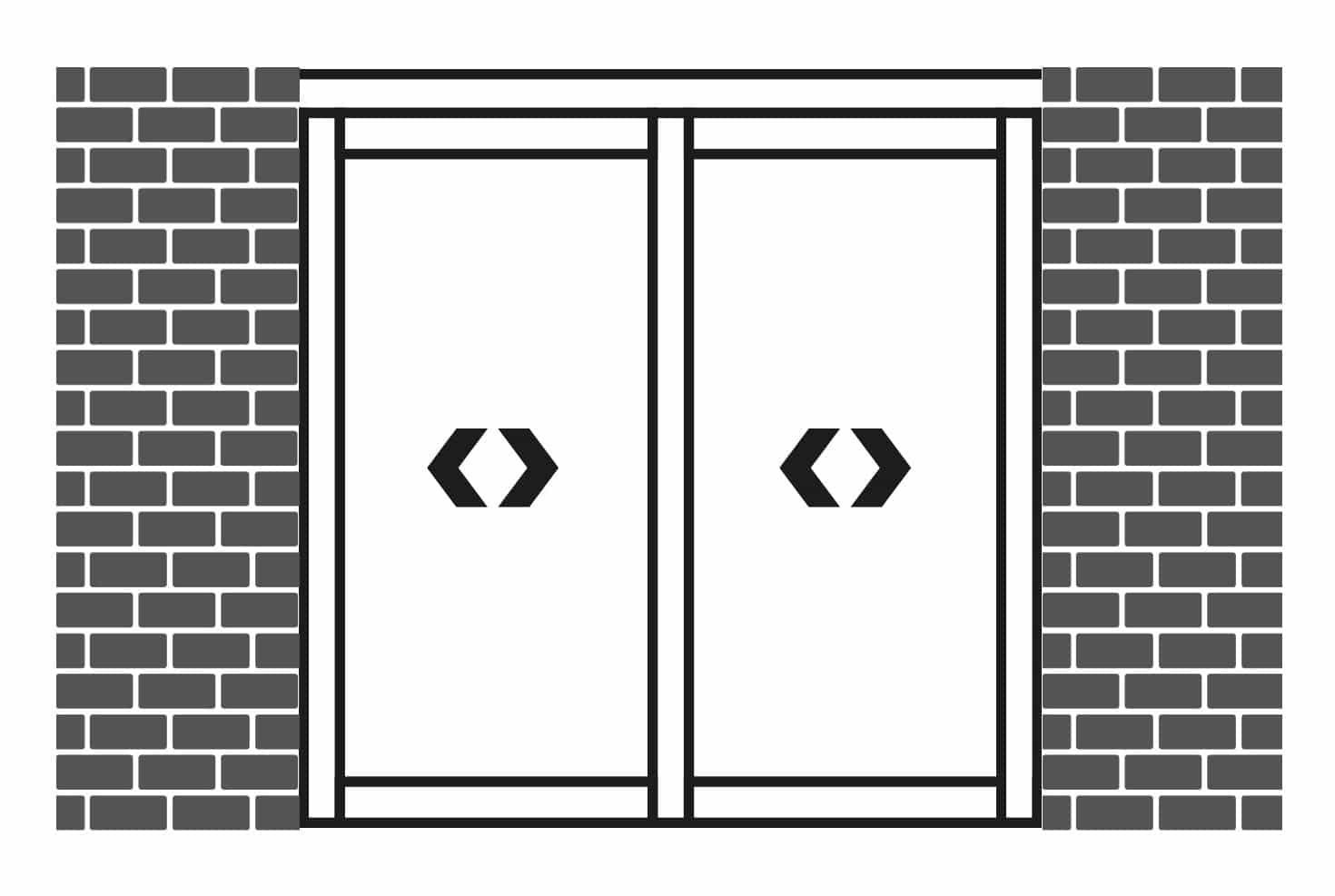

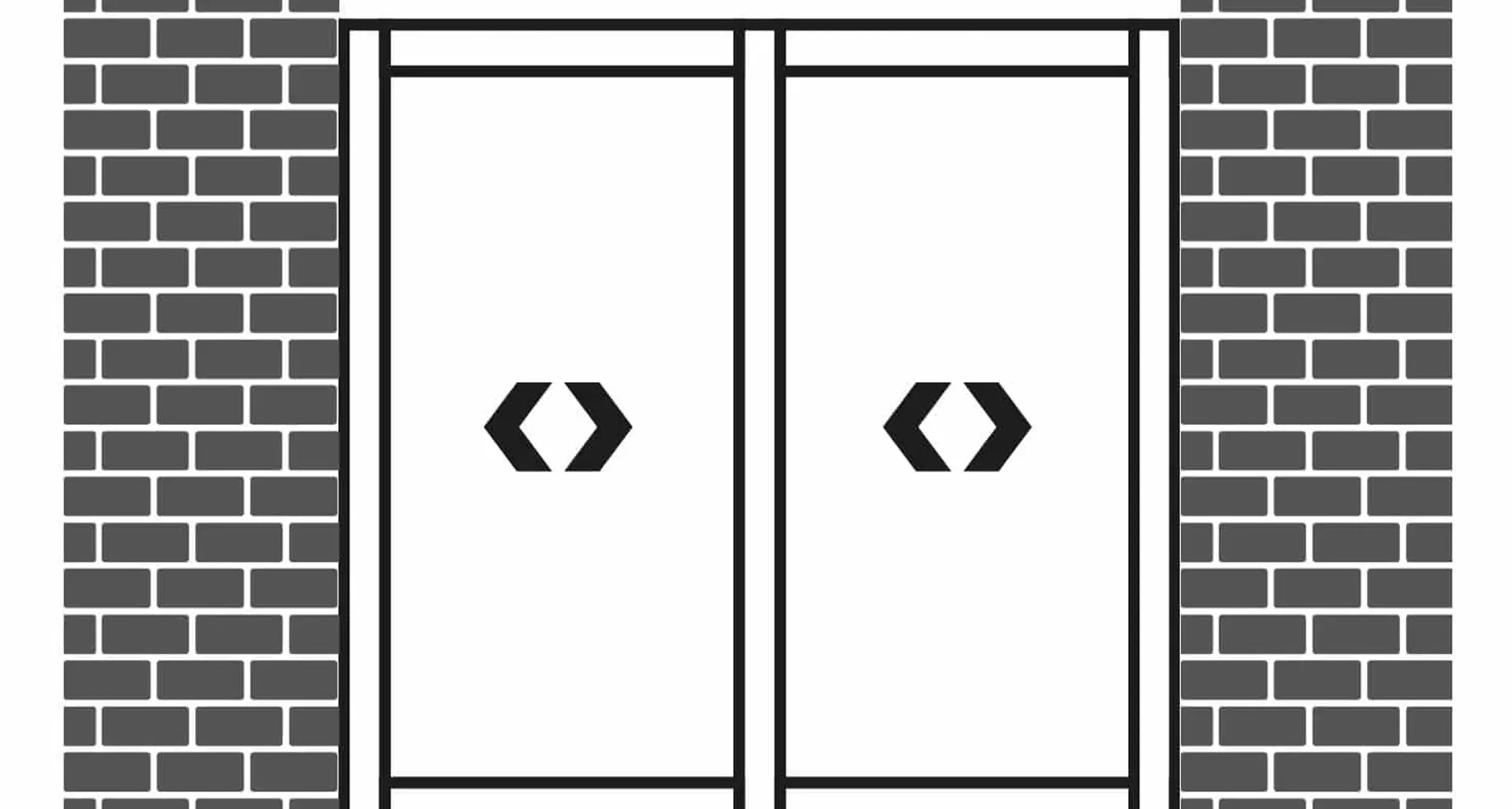

Dual panel pocket door

Dual panel pocket door

6 Panel Door - Fixed Side Panels

6 Panel Door - Fixed Side Panels

Dual Track Four Panel

Dual Track Four Panel

Featured Projects





Standard Colour Options

Our Knight Line sliding door is available in hundreds of colours and you can have a different colour inside and out. You can choose between a matt or gloss finish, or opt for our special Coatex finish. You can even choose one of our realistic wood effect finishes if you prefer. We offer three colours as standard, Black, White and Grey as well as any RAL colour finishes to order

White

White

RAL 7016

RAL 7016

Black

Black

Grey on White

Grey on White

Black on White

Black on White

Bespoke Finishes

On top of our standard colour range we offer a wide range of custom colour options from our RAL colour chart, with the option to have the same colour on both sides of your new door or choose a separate colour both internally and externally.

On top of our RAL colour range we also offer Syntha Pulvin and BS Colours on the Knight Line door range.

Glass Options

You can customise your glazing to meet specific needs, such as enhanced heat reflection for south-facing aspects, improved U-values for thermal performance, UV protection for your furniture and fabrics, self-cleaning glass for easy maintenance, and reduced visible light transmission for added comfort.

Centre Pane U-Value

Warm edge spacers and argon gas are incorporated in this glass structure

Double Glazing

All of our roof lanterns come with A+ double glazing as standard.

Self Cleaning Glass

With self-cleaning technology included as a feature, the need for glass maintenance is kept to a minimum.

Centre Pane U-Value

Upgrade to our highly efficiency glazing, perfect for larger roof lanterns.

Triple Glazing

With many of our roof lanterns, we offer the flexibility of triple glazing

Solar Control Glass

UV protection for your furniture and fabrics to protect against the sun’s powerful rays, and help to control temperatures in the summer.

Acoustic Glass

With our acoustic glass, external noise is kept to a minimum.

Downloads
