Infinite Glazing

Multi Section Roof Lights

Multi-section flat roof lights offer the ability to create massively oversized flat roof lights by allowing us to create theoretically infinite runs of roof glazing. These innovative flat roof lights really set our offering apart from the rest because our bespoke profile will enable us to create these jaw-dropping spans at very competitive prices. We do this by utilising either structurally laminated glass fins or a range of steel or aluminium profiles depending on your aesthetic preference. These unique roofs bring a feel of premium design to any space and can be seen first-hand in our Heswall showroom.

Multi Section Roof Lights

Glass Fin Roof Lights

Unlimited possibilities

Our glass fin roof lights create the illusion that there are no structural supports, as the thick laminated glass fins give structural support to the glass panels above. Not only do the glass fins add structural support, but they also look great and really add a wow factor to any property.

Structural Metal Bar Roof Lights

Art Deco Inspired



An alternative to the glass fin roof light is our metal bar roof light range. We use thin metal bars to add structural integrity to the large openings at central points. Not only does this function well and give an almost uninterrupted view, but the design closely matches the current industrial window and door trend.

Technical Details

We have a number of different technical drawings available to architects and builders to help demonstrate how our roof lights can be installed in different applications, below are a few standard installation configurations that we see most regularly.

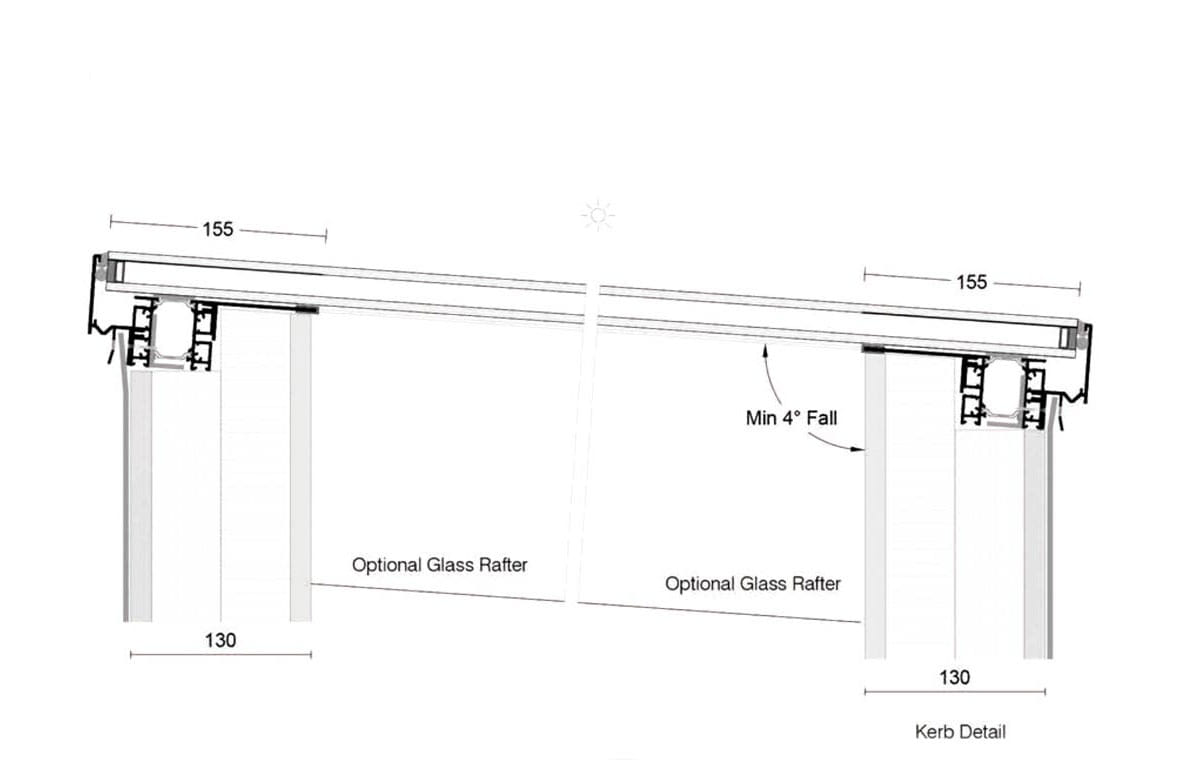

Kerb detail

Kerb detail

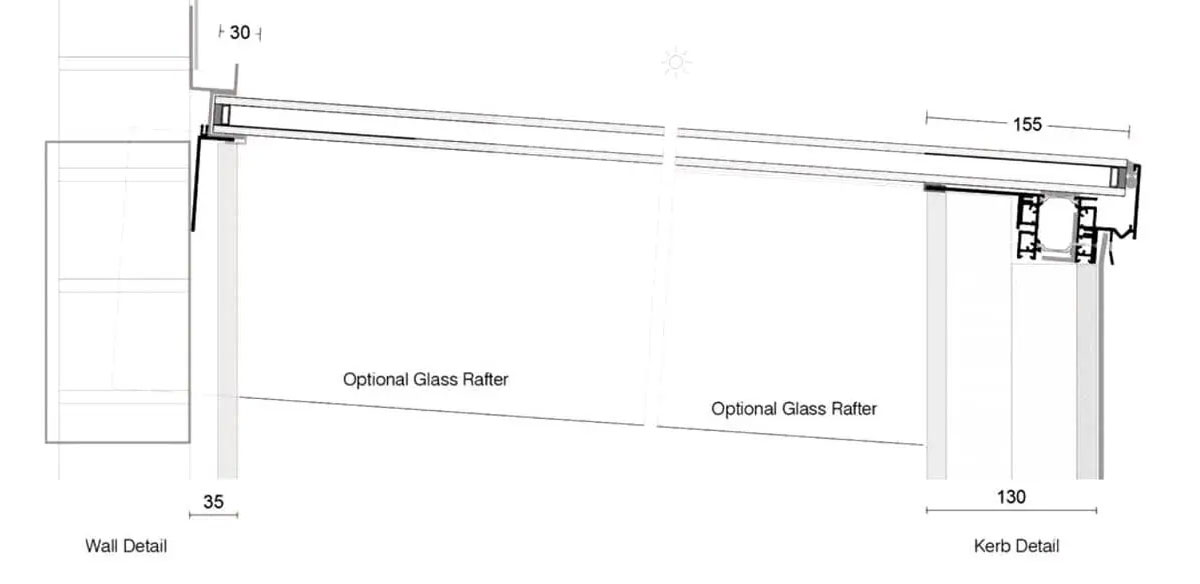

Kerb to wall detail

Kerb to wall detail

Elevate Your Space with Custom Roof Lights

Flat roof construction has evolved vastly over the past ten years. It has become the go-to solution when homeowners want to add extra space downstairs, particularly in open-plan living areas. More recently, we have seen single-story flat roof extensions constantly growing, with some homeowners looking to add an additional 75 sqm of open-plan living space.

This has led to a rise in demand for oversized flat roof lights to help bring in more light through the roof. Glass can only span so far before it requires some form of structural support. We have developed two systems within our multi-section roof light range to combat this issue and remove the limitations on flat roof light size.

With a maximum overall size of 80m2, our Ultra flat roof removes the limitations of what has previously been achievable. Create uninterrupted views to the outside through your property's roof, seamlessly blending glass within your home's roof structure.

With a roof light so big, the possibilities are truly endless. Our INFINITY roof lights have been used to glaze complete corridors, create huge openings within ultra-modern extensions, flood an otherwise dark space with tonnes of natural light, perfect for central hallways, or add a modern touch to an existing flat roof structure.

Available in either double or triple glazing and with overall U values from 0.75 W/m2k, the U value of your roof will not be compromised by the addition of an Ultra roof light, and in many situations, it will be improved. The strength of the roof light comes from the glass itself, with all visible supports also being manufactured from glass, ensuring an interrupted view of the outdoors.

If you are looking for something special to complete your new project or to breathe new life into an existing space, our Ultra roof lights are a perfect choice.

Glazing Options

Our multi-section roof lights are available in a wide range of glazing configuration to suit different project types. Below are some of our standard configurations, if you require something different please get it touch.

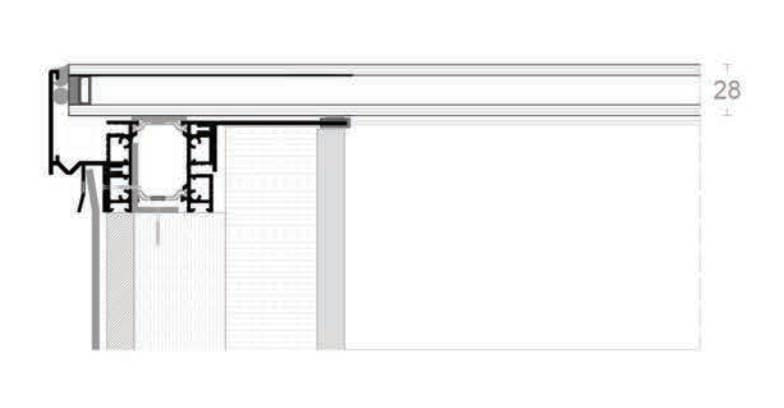

Double Glazed

Double Glazed

Double Glazed Walk On

Double Glazed Walk On

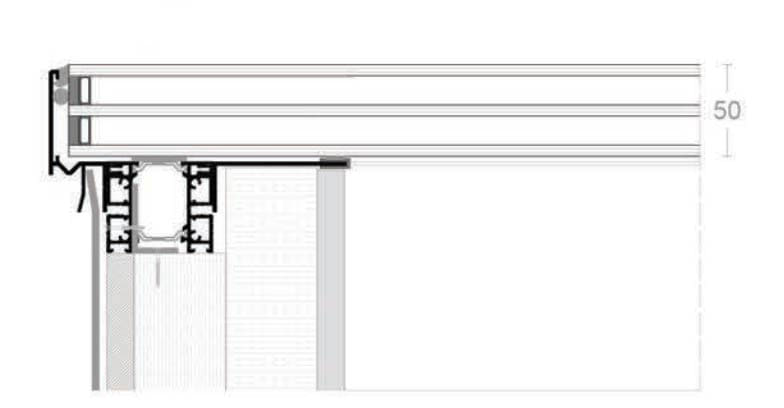

Triple Glazed

Triple Glazed

Triple Glazed Walk On

Triple Glazed Walk On
