Internorm Home Soft KF 200 UPVC



Technical Data

Thermal Insulation

Thermal insulation with standard triple glazing LIGHT (Ug = 0.6 W/m2K) Uw = 0.88 W/m2K
Best thermal insulation Uw up to 0.74 W/m2K (with corresponding glazing)

Sound Insulation

Soundproofing up to 45 dB (with corresponding glazing)

System Description

  • 71 mm construction depth UPVC/aluminium resp. 68 mm in UPVC
  • Narrow view width up to 97 mm
  • Triple gasket system
  • Fully concealed hardware available upon request
  • FIX-O-ROUND technology
  • Security class RC1 and RC2 tested (upon request)
  • 5-chamber system
  • Locking parts screwed into steel – from a certain window size on Standard security
  • Shortened aluminium attachment clad available upon request, for thermo-technical optimised construction connection

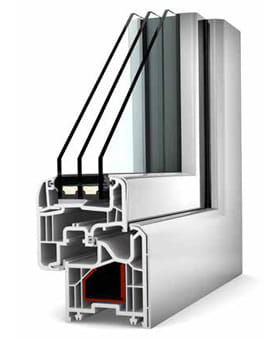

Internorm Home Soft KF 200 UPVC - Window profile

I-tec Features

Internorm iTec glazing logo

Aluminium Version

Along with the classic UPVC version in white, the aluminium attachment clad version in all colours is also available.

I-tec FIX-O-ROUND Technology

Continuous all around fixing of the glass pane ensures better stability, thermal and sound insulation, burglary protection and functioning security.

Triple Gasket System

Three continuous gasket levels without interruption ensure high impermeability.
